Fiddlehead model

A renown naval architect, Howard Chapelle, advised that every boat shop needs a “moaning chair” where one can sit and look at a problem and think about how to fix it. It’s moaning chair time. Woodworkers often lament the way wood behaves when it is cut. Just after cutting the elliptical openings in the bulkheads, s-p-r-o-n-g! They both turned into curly things.

Several attempts to reflatten by steaming and clamping did no more than delaminate them. The resolution was to remake them using thicker boards. Then after all the cutting was completed, I milled them to the correct thickness.

This is one of those areas where it’s good to learn the lesson on a model. It turns out that builders of the 1:1 version have reported similar problems making these bulkheads.

The extra parts in the picture are for the hatches in the bulkheads. The bulkheads are intended to be watertight, providing a flotation chamber in each end of the boat. The plans define a hatch which uses a screw mechanism and gasket to close the opening. Or, one can buy a ready made closure from a boating supply outlet. I chose to mimic the one in the plans.

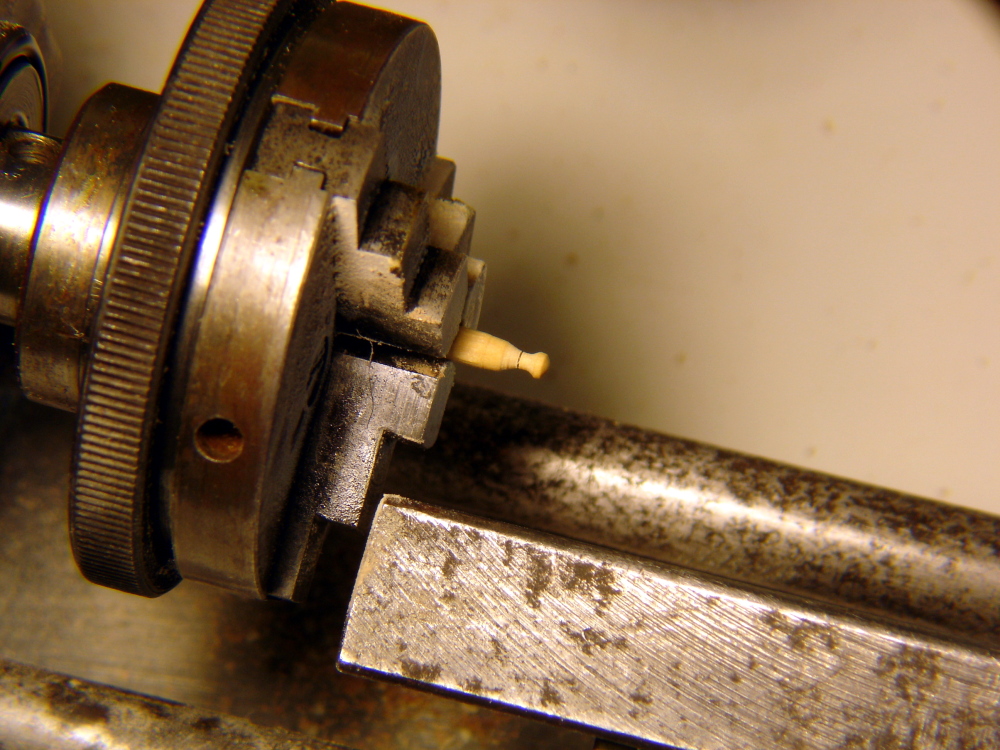

The screw is operated by a knob. Let’s make one. Of course it’s too small to operate like the 1:1 version, but can be made to look like it.

This made a good excuse for doing some refurbishment of an ancient Unimat lathe. It will never be a good metal turning lathe again, but it’s good enough for this task.

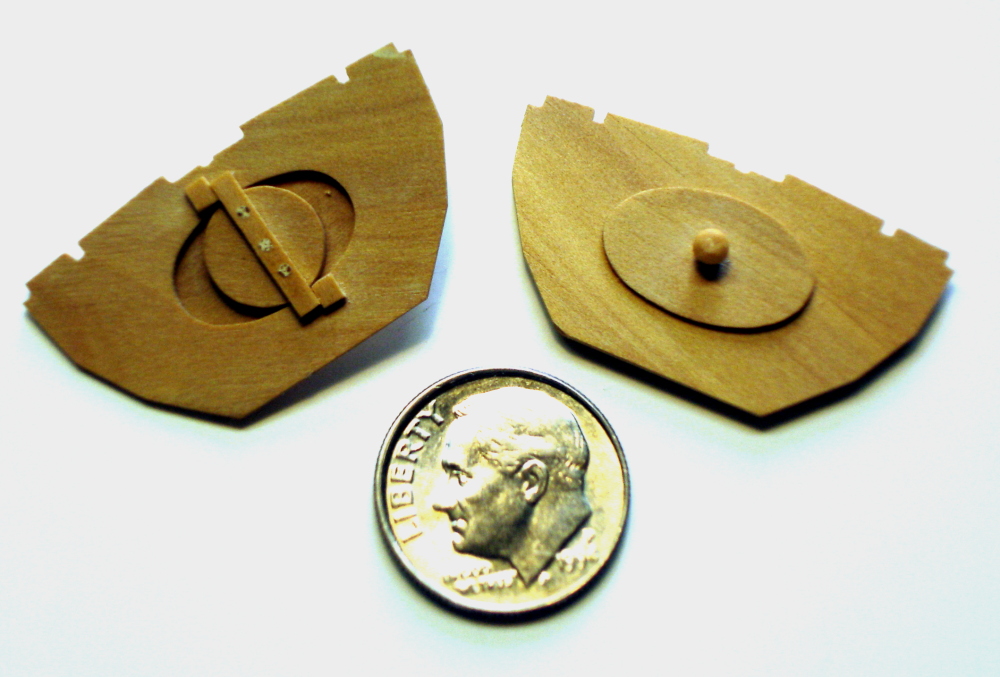

The port closures turned out very well. They can be installed and removed much like the full size version. These details add a “Wow!” factor and help define “fine scale.”

Click on any image to show a larger version.

Unlike many canoes, this one has a flat bottom. It is very much like a dory bottom, flat, wide, and with a very slight bit of rocker (fore and aft curvature). One of the benefits of this sort of bottom is relatively high “initial stability,” meaning that it isn’t as tippy as a narrow round bottom or v-bottomed boat might be when you first step in to it. It’s also very easy to construct.

We won’t find boards wide enough for the full width, nearly 15 inches. So, we edge glue as many boards as needed to make up the width. Due to lumber availability, the 1:1 version will likely require 3 boards, and that is what I did for the model. These joints are probably the most critical in the boat. They are edge joins of boards that are 9/16 inch thick, and are fastened solely with glue. The edges have to mate as close to perfectly as possible. They will be a good place to use a #8 jointer plane.

The photo shows how I simply cut out parts of the drawings and rubber cement them to the actual parts for cutting. The technique minimizes a lot of measuring and the errors that come along with measuring.

Click on the image to show a larger version.

I shaped some very small parts today, the coaming support knees and the stems. Doubling up boards certainly reduces the amount of sawing. The bulkheads were doubled (opposing grain directions), and the perimeters were cut. Most are straight line facets. Tomorrow: the elliptical holes in the bulkheads.
